Mnt. pesenan:1 Piece/Pieces
Size: 10.1 inch
Brightness: 1000 nits
Contrast Ratio: 1000:1
Resolution: 1280*800
Operating Temperature: -10 - 50°C

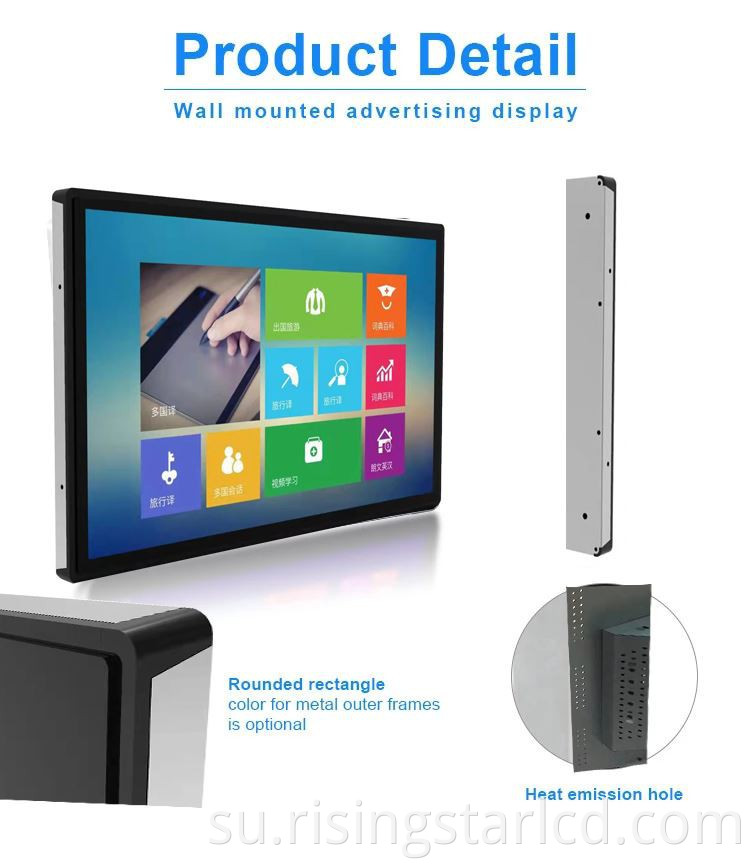

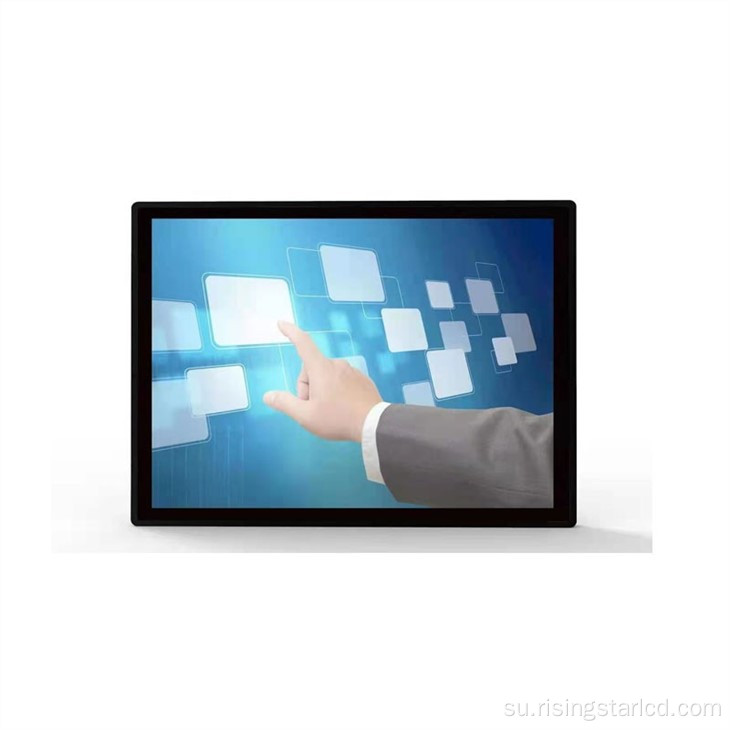

Ukuran leutik dipasang di luar pesenan, 10,1 inci tft 1000 nits monitor LCD. Eusi anu ditampilkeun dina layar tiasa jelas ditentar dina lingkungan anu terang, tiasa dianggo sareng sagala jinis tumpukan ngecas tihang, Kiefine sareng terminal pangladent Buking sareng terminal anu sanés.
Upami anjeun parantos peryogi sanés, mangga kontak kami, kami bakal ngalebetkeun leyuran tampilan kristal anu paling cocog dumasar kana kabutuhan anjeun.
Fitur luar retoor produk produk
10.1 "TFT LCT LCT
1280 * 800 resolusi
luar biasa, kacaangan ti 500nits dugi ka 1500 nit opsional
Panel Sentuhan Kantun, ditutupan ku kaca tungku 2mm sareng anu dipercaya pikeun buktina Venish
Vega HDMI DVI Threface
Penghasil Kaunterboard tinggi, 7/24 operasi kontinyu
Dukungan 12-24V
Bezel hareupeun 3mm 3mm, idéal pikeun dipasang dipasang
Panel hareup IP55 Pegahan Debu
Operasi Lega: -10 - 50 ° C
|
Product specification |
|
|
LCD panel |
|
|
Panel size |
10.1" |
|
Resolution |
1280*800 or 1024*600 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits (can be customized) |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows ,HDMI, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver or customized |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP55 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 50°C, storage: -20 to 80°C |
|
Relative humidity |
operating: -5% to 95%, storage: -5% to 95% |
|
Packing Details |
|
|
Gross weight |
about 4kg |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, 3C, RoHS |
