Mnt. pesenan:1 Piece/Pieces
merek: Risislcd
kakuwatan keur ngasilkeun: 12500
Tempat Asal: Shen asrehen
Sertipikat: CE/ROSH/ISO9001/UL

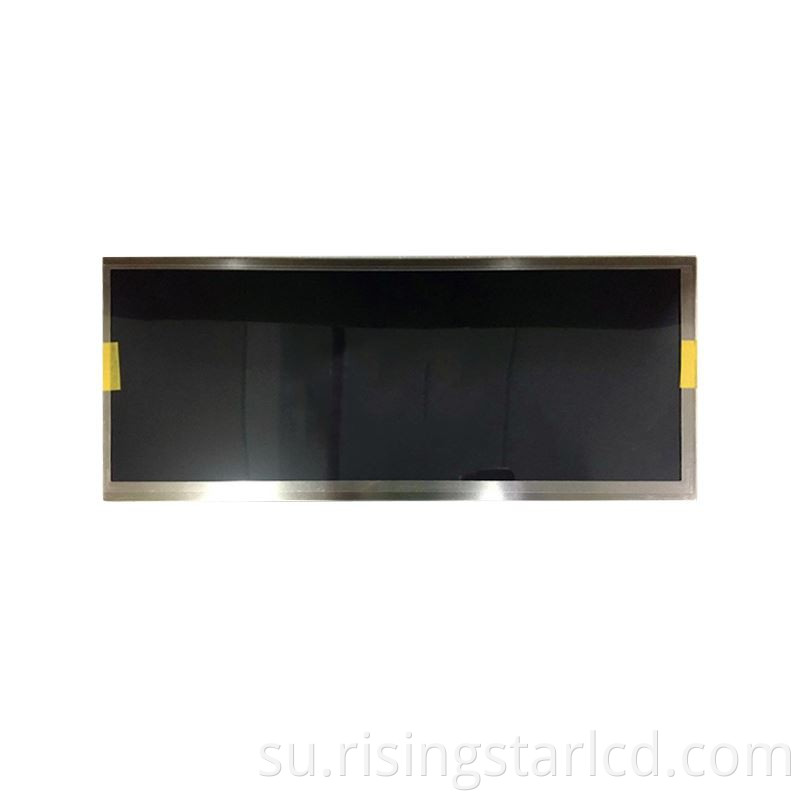

Shenzhen Riselstarin 1000 Nelel LCD 12.3inch 12.3inch LCD Silfdle Hormat Hasil 1000 Nits, Sunshine. Panel LCD gaya ieu mangrupikeun panel LCD Industri, Spurs damel-Maret. 85 ℃℃ .Thing penghakatan panél ieu mangrupikeun mobil / 28.4G / S2).
| Size | 12.3inch |
| Panel item | RS123NET-N10 |
| Panel type | a-Si TFT-LCD |
| Display mode | Normally black |
| Pixels | 1920*720, 167PPI |
| brightness | 1000cd/m2 |
| Constrast Ratio | 1000：1 |
| View angle | 85/85/85/85 |
| Dispaly area | 292.032*109.512mm(H*V) |
| Outline Size | 308.1*130.7.6mm(H*V*D) |
| Signal Type | LED |
| Working freqyency | 60Hz |
| Working temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| Display ratio | 8:3 |
| Display color | 16.7m |
| Supply Voltage | 3.3V |
| Single interface | LVDS (2ch,8-bit),50 pin |
| Weight | 0.52kgs |
