Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Mnt. pesenan:1 Piece/Pieces
merek: Risislcd
kakuwatan keur ngasilkeun: 1500K
Tempat Asal: Ben zhen
Sertipikat: CE/ROSH/UL/ISO9001

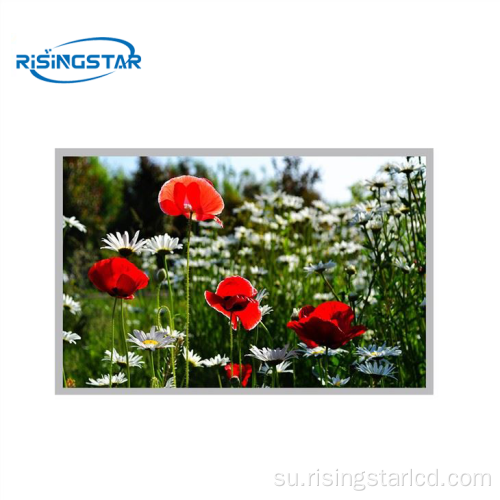

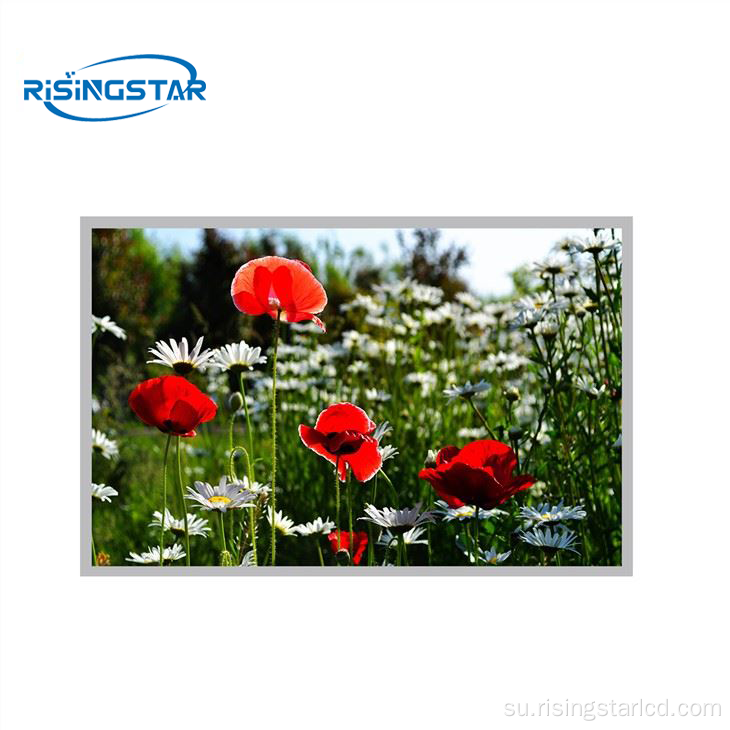

| Panel Brand | RISINGSTAR | Panel Model | RS156XW-NE10 |
| Panel Size | 15.6" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 (WXGA) 100PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 (H×V) | Surface | Antiglare, Hard coating (3H) |
| Outline Size | 363.8 × 215.9 × 17.35 (H×V×D) | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness | 1000nit or customized | Display Mode | TN, Normally White, Transmissive |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M 70% NTSC | Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz | Input Voltage | 5V (Typ.) |
| Weight | 1.25/1.35Kgs (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) , Connector 30 pins |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C | ||
1.Profaktéri rapet
2Profaktur luhur layar LCD LCD, tiasa tahan 110 suhu luhur
3.samung, lg, beo, auo, anutan kerjata kerjasama
4.Sto nyayogikeun anjeun sareng téknologi luar negeri
Tag Panas: 15,6 inci Inch 1000nit Divalisasi digital, Cina, pabrik, murah, hargana, transpress, diskasi, 2000 témbok TTCD, 2000 tampilan TTCD, 2000 tampilan LCD, 2000 NANGKEUN, 2000 Tingal TTCK, 2000 témbok TTCD , Panel LCD TV , panel LCD, Modul LCD, tampilan kahareup luhur.
17 "1500nit 1500nit
15.6 inci 1000nit LCD LCD
